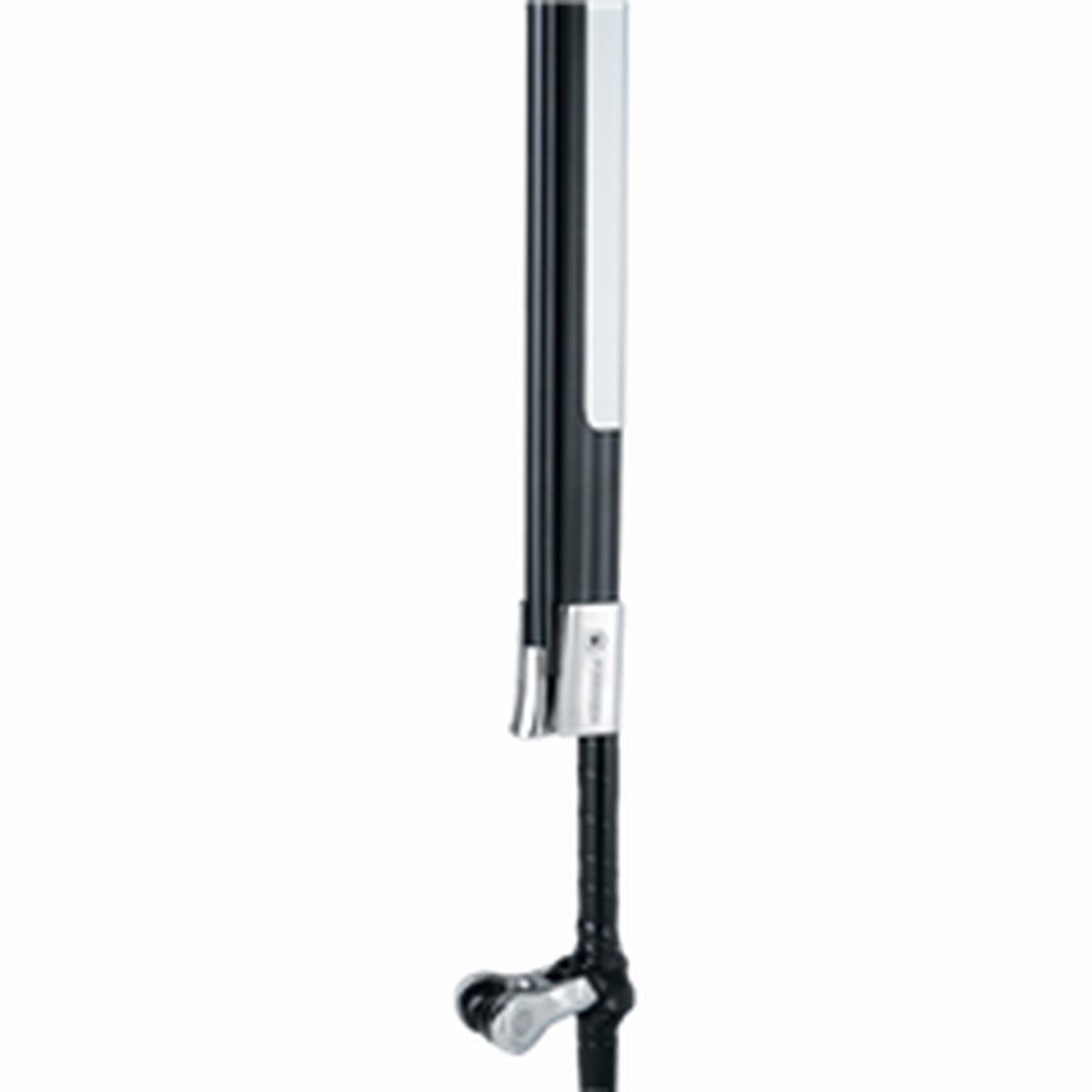

Unit 2 Carbo Foil Set 20 m

***No On-line Purchase. Only Available in Ship Shop

Part No. 7002.20M

Maximum wire (mm)10 mm Maximum wire (in)3/8 in Maximum rod (mm)10.31 mm Maximum rod (dash)-25 dash Extrusion length (m)20 m Extrusion length (ft in)65′ 7″ ft in Maximum headstay length (m)21.2 m Maximum headstay length (ft in)69′ 7″ ft in Spacer tube length (m)1 m Spacer tube length (ft in)3′ 3″ ft in Extrusion weight (kg/m)0.275 kg/m Extrusion weight (lb/ft)0.185 lb/ft Full system weight (kg)5.83 kg Full system weight (lb)12.9 lb Luff tape size (mm)5 mm Luff tape size (in)#6 (6/32) in
The low-friction twin headsail grooves are ultra-smooth, allowing hoists, douses, and headsail changes to be easily and efficiently executed. The engineering resins in these strong, lightweight head foils offer significant advancements over the weaker PVC materials used by other manufacturers. Impact resistance is unmatched, with far less foil damage from loaded spinnaker poles, especially in cold weather. Heat has little effect on stiffness.
