Tooling Package, Grizzly/JET/Harbor Freight Bench Lathe + AXA QCTP

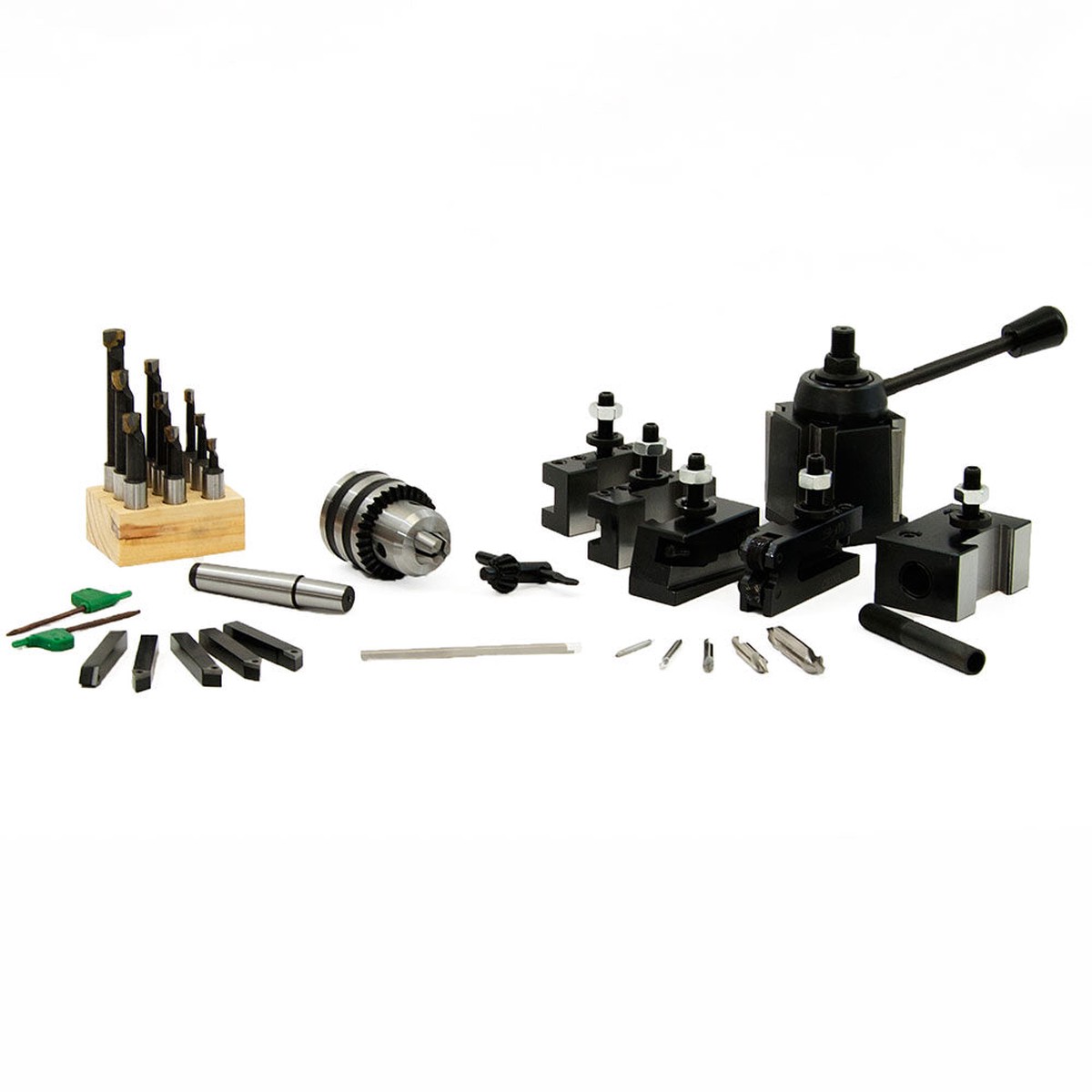

This package contains all the tooling you need to be productive with your 9×20 lathe on the first day you own it.

***NOTE*** This kit includes a tool post mount that is internally threaded M8 to thread over the standard tool post mounting stud on a 9×19 or 9×20 lathe. It may require some work in order to make a T-slot nut, to mount this QCTP on your lathe.

Includes an AXA (Series 100) quick change tool post set (2280).This set includes the tool post and the following tool holders:

• 2 – #1 Turning and Facing
• 1 – #2 Boring, Turning and Facing
• 1 – #4 Heavy Duty Boring will hold both 5/8 and 3/4 boring bars
• 1 – #7 Universal Parting Blade (for 1/2-inch cut-off blade – horizontal)

The quick-change tool post is made from hardened steel. No tools are required to change tools. Additional tool holders are available.

The turning tool holders accept tools up to 1/2″ shank. The turning and boring tool holder accepts boring bars with up to 1/2″ round shanks. The cut-off tool holder holds 1/2″ tall parting blades.

The 1/2″ capacity drill chuck (1212) is mounted on a standard 2 Morse taper arbor (2955) . The rated capacity of the drill chuck is 1 mm (0.039″) to 13 mm (0.512″).

The set of indexable turning tools (1669) includes 5 tools (TAR, TAL, TBR, TBL, TE), inserts, a wrench, and extra screws. It comes in a wooden case. The carbide inserts are TCMT21.51.

The 9-piece carbide tipped boring bar set (1247) includes three different length boring bars each for minimum bores of 5/16″, 3/8″, and 7/16″. The bore depth ranges from 3/4″ to 2-1/4″. Heat treated, alloy steel shanks.

The P1X parting blade (1552) is 5/64″ x 1/2″ x 4-1/2″ and made from M2 HSS. These T-shape parting blades provide great side clearance.

This lathe tooling package includes 4 different sizes of combined drills and countersinks – Center Drills (2990). The HSS center drill set includes sizes 1, 2, 3, and 4. These are 60 center drills; the sizes that are most used by bench top machinists.

To complete the kit, a threaded stud (3712) designed to mount a quick change tool post to Grizzly, Harbor Freight, and Jet 9×20 lathes.
