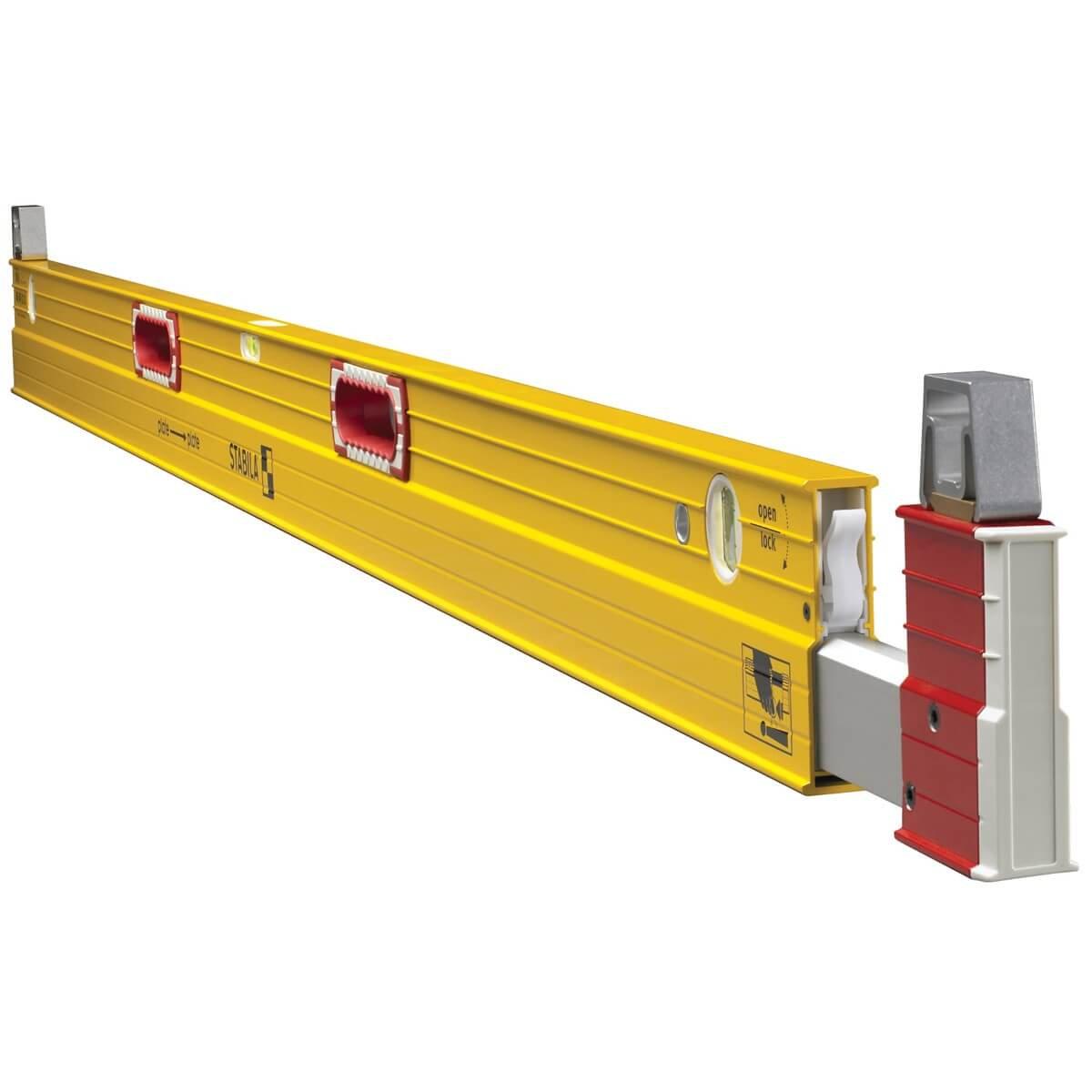

STABILA STA-35712 – Extendable (7 to 12 foot) Plate to Plate Level

Three chamber rectangular aluminum profile with reinforcing ribs / Two coated measuring surfaces / Suitable for overhead (vial down) measurement / Extremely long extendable spirit level that adjusts for “plate to plate” measurements on most residential and commercial wall heights.

Features

• STABILA Type 106T Plate Levels
• These levels extend so tall walls, tall doors and big windows can be installed properly and quickly.
• Strong reinforced frame.
• Measuring surfaces are not machined.
• Two hand grips.
• Steel hang hole for storage.
• 6 sided keyed extension rail delivers smooth and rigid operation.
• Vial accuracy guaranteed for life.
• Plumb vial always at eye level .
• 2 plumb vials, 1 level vial.
• Opposite side is a measuring surface and straight edge.
• Positioning scale on both sides of the extension rail for FAST set-ups: : 9ft 1in, 10ft 1in, etc.
• The removable 1-5/8in stand-offs included deliver accurate plate to plate measurements around braces. They simply twist-on.
• Also available in magnetic – without stand-offs.
• Carrying cases, replacement endcaps are available as optional accessories.
• Order the maintenance kit cat. number 33000 to keep the extension system operating like new.

Specifications

• Measurement accuracy in normal position: 1/32in @ 72in

• Measurement accuracy in reverse position: 3/64in @ 72in

• Measurement accuracy in extended normal position: 1/8in @ 120in

• Number of measuring surfaces: 2

• Profile: Reinforced 2 chamber profile

• End caps: Standard
