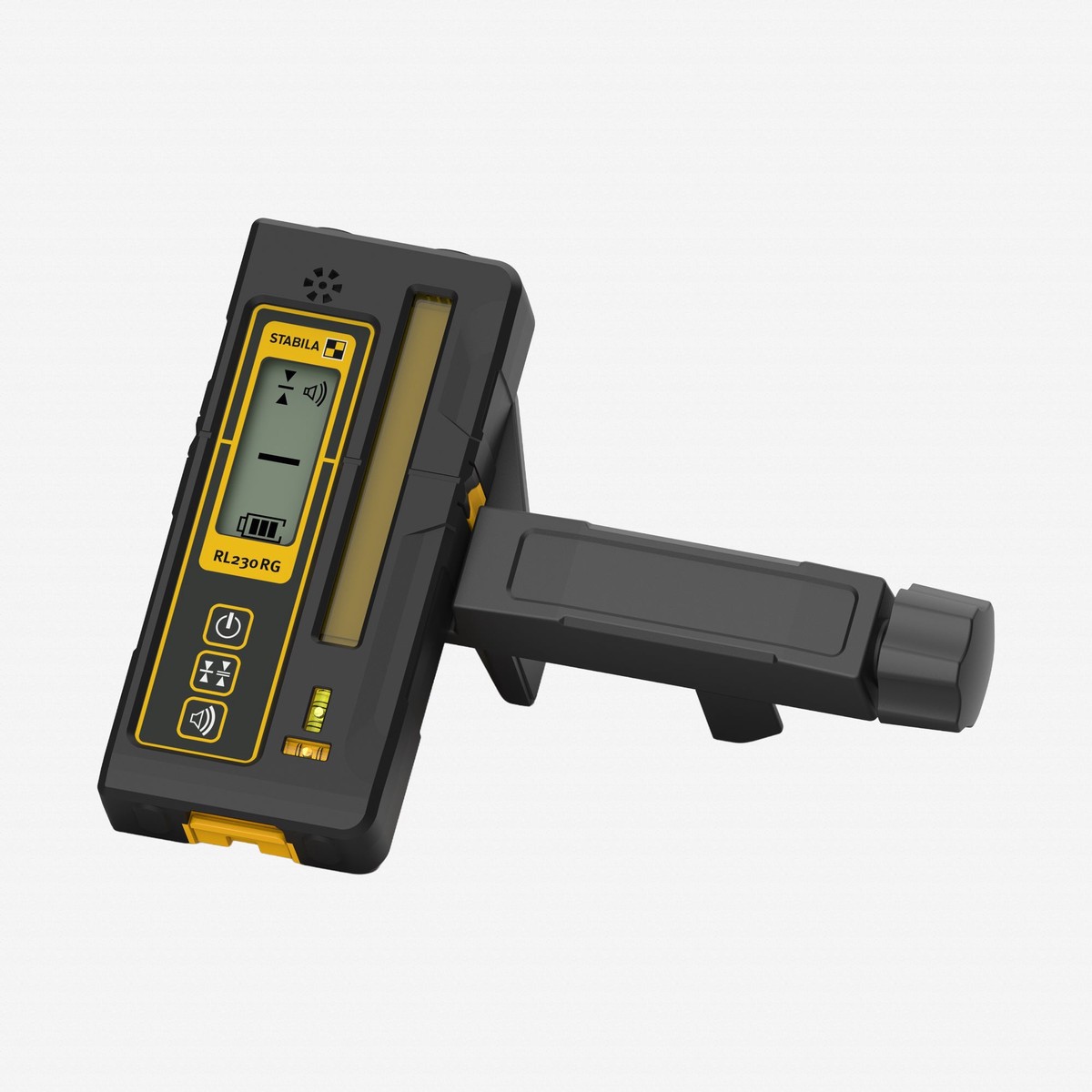

Stabila RL 230 RG Laser Line Receiver

Stabila RL 230 RG Laser Line Receiver

Work precisely over long distances!
For green and red line lasers
Determines the exact position of a pulse-modulated laser line in relation to the reference plane – even over long distances and when the line is no longer visible
Illuminated digital display on both sides
Acoustic and visual signaling
Two sensitivity levels: fine (+/- 1/32″) and coarse (+/- 1/8″)
Integrated magnet attachment point on the upper edge of the housing
Includes bracket for attachment to leveling rods
Waterproof and dustproof to IP66 standards
2 AA batteries (included) yields approximately 40 hours of use

Working area diameter:
With LAX 600 G laser: 6.5′ – 985′ (2m – 300m)
With LAX 600 laser: 6.5′ – 787′ (2m – 240m)
With LAX 400 laser: 6.5′ – 655′ (2m – 200m)

Measuring Range:
With LAX 500 G laser: 6.5′ – 492′ (2m – 150m)
With LAX 320 G laser: 6.5′ – 262′ (2m – 80m)
With LAX 300 G laser: 6.5′ – 196′ (2m – 60m)
With LAX 300 laser: 6.5′ – 196′ (2m – 60m)
With LAX 180 L laser: 6.5′ – 328′ (2m – 100m)
With FLS 90 laser: 6.5′ – 98′ (2m – 30m)
