Spring, X-Axis Handwheel, HiTorque Large Bench Mill
Sale!

Spring, X-Axis Handwheel, HiTorque Large Bench Mill

Original price was: $12.00.Current price is: $7.00.

SKU: UQ7744003217 Category:

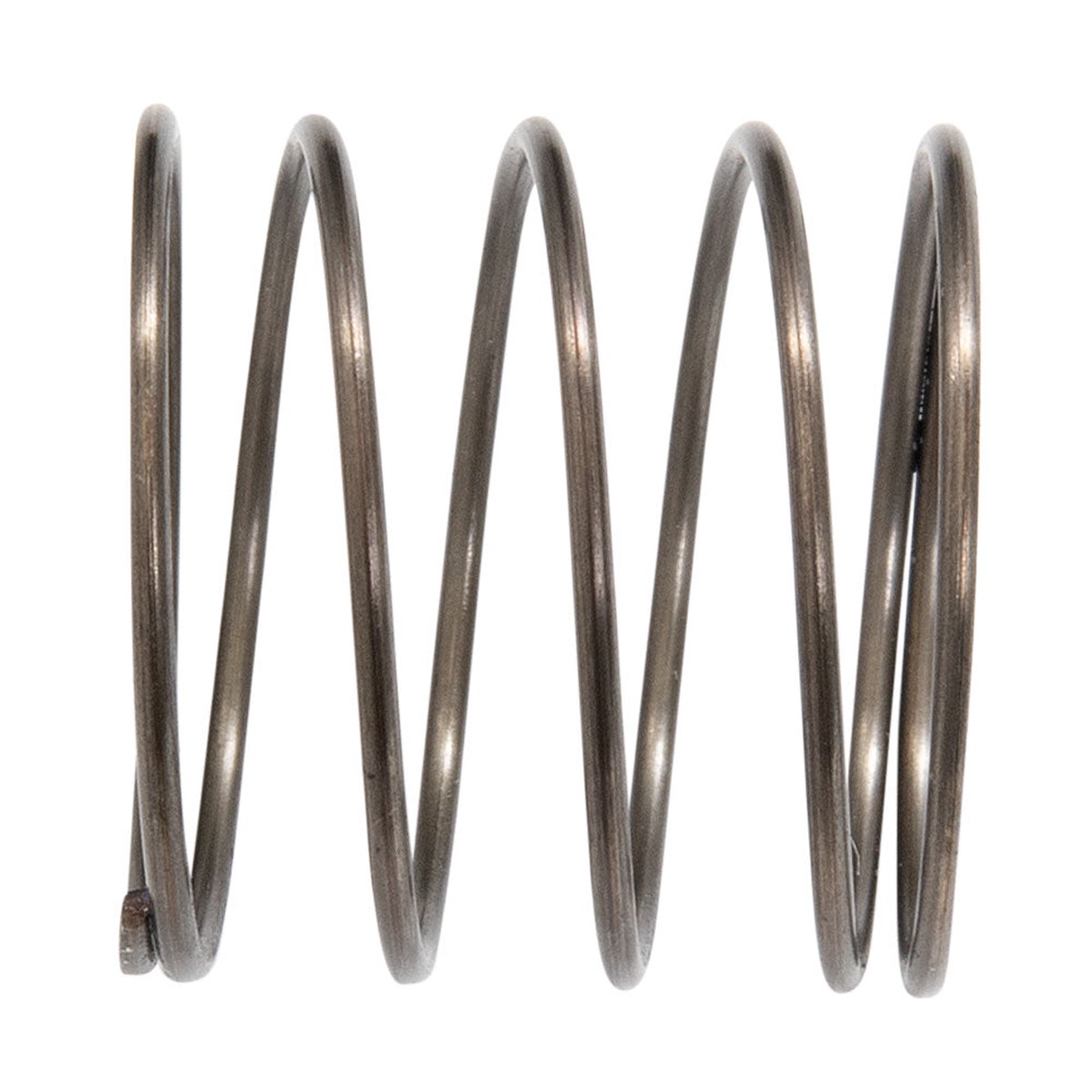

X-Axis handwheel compression spring for the HiTorque large bench mill and SIEG SX3.5 mills. The spring allows the X-Axis handwheel to engage a clutch and spring back to neutral when disengaged. The wire diameter of the spring is 1.20 mm with a 24 mm coil diameter. The length uncompressed is 23 mm with 5 coils and a right hand wind. The spring has a closed end.
