Rotary Table, 4″ H/V – Precision

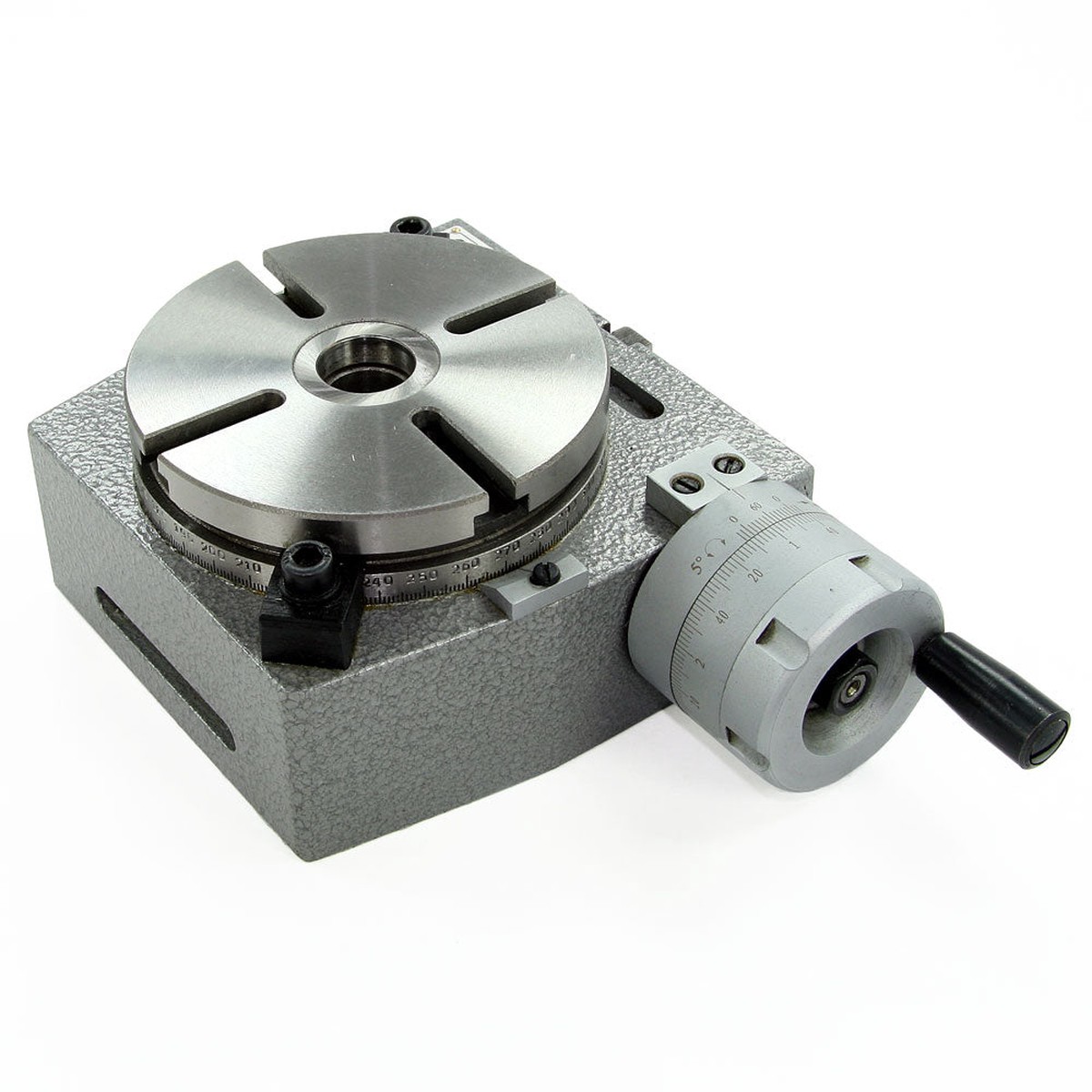

This horizontal / vertical rotary table is for indexing, circular cutting, angle setting, boring, and spot facing operations. The meehanite cast iron table is precision machined and has a 2 Morse taper center hole. The table is graduated with a 360 scale. A micro collar graduated to one minute with a ten second accuracy vernier scale is provided. The rotary table has lock down clamps, and the crank can be disengaged.

• The worm ratio is 72 to 1.
• Flatness of clamping surface: 0.0006″ TIR
• Parallelism of clamping surface to base: 0.0008″ TIR
• Squareness of clamping surface to angle face: 0.0004″ TIR
• Squareness of clamping surface to center slot: 0.0008″ TIR
• Concentricity of center bore: 0.0008″ TIR
• Maximum spacing error: 1 minute, 20 seconds.

The worm gear and center hole are hardened and ground.

The table is 2.76″ high when horizontal, and the centerline is 2.76″ above the table when in the vertical position.
