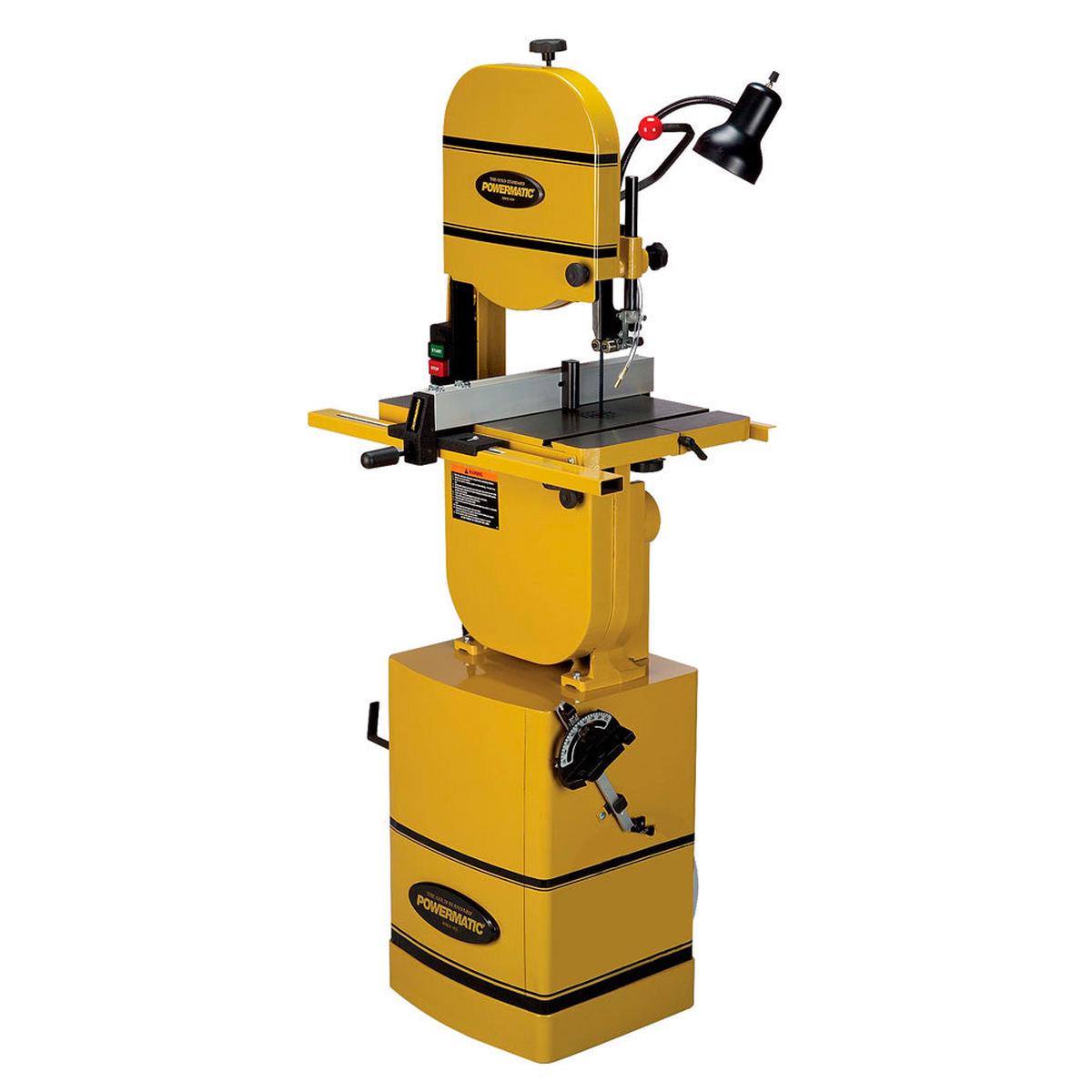

Powermatic 14 Inch Bandsaw

The Powermatic 14″ Bandsaw has an extra large, two-piece cast iron table. It consists of a 15″ x 15″ tilting section and a fixed 15″ x 5″ extension for a total working surface area of 15″ x 20″. A balanced, nine-spoke cast iron wheel makes for smooth blade travel, and a Carter quick tension release lever makes blade changing easy. A micro-adjustable dual bearing blade guide system is featured above and below the table, as well as a work lamp and chip blower. A Poly-V belt maximizes power transmission while minimizing noise and vibration. It has full 6″ under guide capacity with 13-1/2″ frame to blade clearance. The aluminum rip fence comes with a resaw attachment.

Bandsaw Details:

• CARTER quick tension lever speeds blade changes, and the de-tension setting extends blade life during non-use
• Extra-large, two piece cast iron table consists of a 15″ x 15″ tilting section and a fixed 15″ x 5″ extension for a total working surface area of 15″ x 20″
• Chip blower ensures a clean, visible cut line
• Durable micro-adjustable dual bearing blade guide system above and below the table for close blade control with less friction
• Exclusive design, quick-release precision T-square style rip fence with 4″ resaw attachment
• Precision balanced, nine spoke cast iron wheels reduce vibration
• Easy to read tensioning gauge settings indicated in “blade width” increments
• Full 6″ under guide capacity with 13-1/2″ width capacity
• 60 watt adjustable lamp built into the body provides direct light on blade and work piece while cutting (bulb not included)
• Rigid one-piece welded stand requires no assembly

Standard Equipment:

• CARTER quick tension release
• Adjustable miter gauge
• T-style rip fence with resaw assembly
• 3/8″ Bandsaw blade
• Gooseneck work lamp and chip blower

Specifications:

• Cutting capacity width: 13-1/2″
• Cutting capacity height: 6″
• Minimum saw blade width: 1/8″
• Maximum saw blade width: 3/4″
• Blade speed: 3000 SFPM
• Blade length” 93 1/2″
• Table dimension (LxW): 15 X 15″
• Table dimension with extension (LxW): 15 x 20 1/2″
• Table tilt: 10 left, 45 right
• Table height From floor: 44″
• Dust port outer diameter: 4″
• Stand type: closed
• Thickness capacity (max): 6″
• Bandsaw size: 93 1/2″
• Wheel diameter: 14″
• Motor power : 1.5 HP
• Voltage: 115/230. Pre-wired for 115v

Powermatic part # 1791216K

Special Notes:
Call for our best price on a Powermatic Bandsaw!
