OAK-FFC RPi Hat

OAK-FFC RPI HAT

To place an order, please contact us via email at [email protected]. The minimum order quantity for this item is 100 pieces.

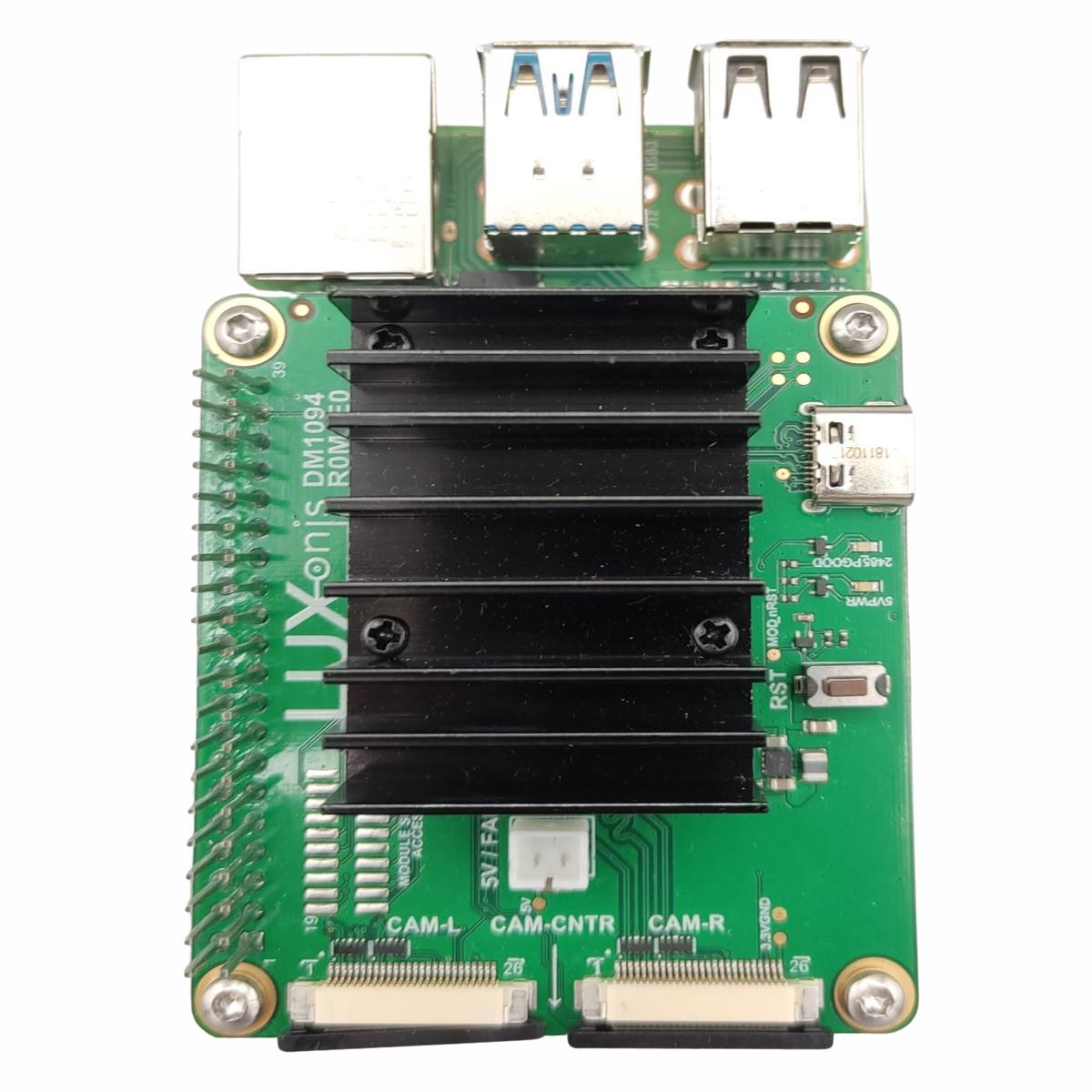

The OAK-FFC RPi Hat is a flexible and powerful prototyping platform that allows you to connect up to 3 FFC camera modules that best fit your project requirement in terms of resolution, FPS, FOV, shutter type, and depth of focus. It also features on-device Neural Network inferencing and Computer Vision capabilities.

Key features:

• Up to 3 cameras: two 2-lane MIPI and one 4-lane MIPI
• 4 TOPS of processing power (1.4 TOPS for AI – RVC2 NN Performance)
• 5V power input via barrel jack
• USB2 / USB3 for power delivery and communication

Description

Key Features

RVC2 architecture on-board features:

• 4 TOPS of processing power (1.4 TOPS for AI – RVC2 NN Performance)
• Run any AI model, even custom architected/built ones (models need to be converted)
• Encoding: H.264, H.265, MJPEG – 4K/30FPS, 1080P/60FPS
• Computer vision: warp (undistortion), resize, crop via ImageManip node, edge detection, feature tracking. You can also run custom CV functions
• Stereo depth perception with filtering, post-processing, RGB-depth alignment, and high configurability
• Object tracking: 2D and 3D tracking with ObjectTracker node

Compatible Camera Modules

Note: Please take note that the manual calibration is needed when the camera modules are connected. Please follow the calibration guide.

Sensor	MP	Color/Grayscale	Shutter Type	Focus Type	Wide FOV	DFOV / HFOV / VFOV	M12 Mount
OAK-FFC-IMX214-W	13MP	Color	Rolling	FF: 50 cm –	–	117 / 105 / 88	–
OAK-FFC-IMX378	12MP	Color	Rolling	AF: 10 cm –	–	81 / 69 / 55	–
OAK-FFC-IMX378-FF	12MP	Color	Rolling	FF: 50 cm –	–	82 / 69 / 55	–
OAK-FFC-IMX378-W	12MP	Color	Rolling	FF: 50 cm –	Yes	120 / 108 / 93	–
OAK-FFC-OV9282	1MP	Grayscale	Global	FF:19.6 cm –	–	89 / 80 / 55	–
OAK-FFC-OV9282-M12	1MP	Grayscale	Global	FF: 20 cm –	–	HFOV: 75	Yes
OAK-FFC-OV9282-W	1MP	Grayscale	Global	FF: 19.6cm –	Yes	150 / 127 / 79.5	–
OAK-FFC-OV9782-M12	1MP	Color	Global	FF: 20 –	–	HFOV: 75	Yes
OAK-FFC-OV9782-W	1MP	Color	Global	FF: 19.6 cm –	Yes	150 / 127 / 79.5	–
OAK-FFC-IMX577-M12	12MP	Color	Rolling	AF:10 cm –	–	HFOV: 75	Yes
OAK-FFC-AR0234-M12	2.3MP	Color	Global	FF: 45cm –	–	100 / 82 / 56	Yes

This board is also compatible with RPi camera interface. For that you will need a FFC from Arducam, which converts 26-pin Luxonis camera pinout to 22 pin RPi camera pinout.

Package Includes

Package contains:

• OAK-FFC RPi Hat baseboard

Note: Camera modules are not included in the packaging. List of available cameras is here.

Files

1. Product Documentation
