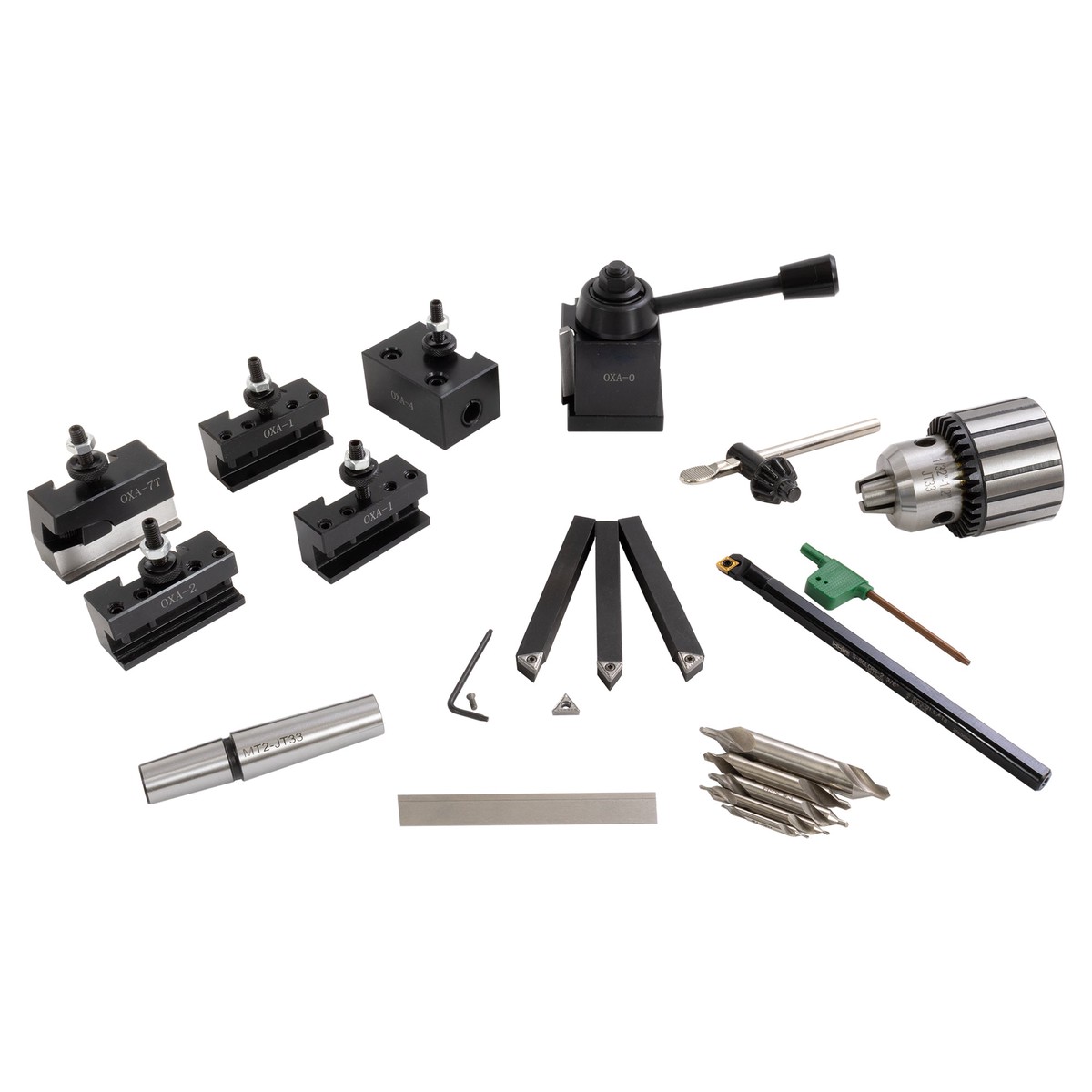

Mini Lathe Tooling Package, Premium + OXA QCTP

This package contains our best versions of all the tooling you need to be productive with your 7x mini lathe from day one.

The 0XA quick change tool post set (3112).This mini lathe tool set includes the tool post and the following tool holders:

• 2 – #1 Turning and Facing
• 1 – #2 Boring, Turning and Facing
• 1 – #4 Heavy Duty Boring will hold both 3/8 and 1/2 boring bars
• 1 – #7 Universal Parting Blade (for 1/2-inch cut-off blade – horizontal)

The wedge type quick change tool post is made of steel, and all working parts are hardened and ground. No tools are required to change tools. Additional tool holders are available.

The turning tool holders accept tools with 1/4″ to 1/2″ shank. The boring tool holder accepts boring bars with 3/8″ or 1/2″ round shanks. The cut-off tool holder holds 1/2″ tall parting blades. (3112)

The set also includes:

• The 1/2″ capacity professional grade drill chuck (3153) is mounted on a short 2MT arbor (1804) for the mini lathe. Specifically designed for the mini lathe tailstock, the rated capacity is 1 mm (0.039″) to 13 mm (0.512″). All working parts are hardened. Chuck key included. The arbor has a #33 Jacobs taper mount. This chuck is comparable to a Jacobs 34-33 heavy duty drill chuck, including the runout specification of 0.004″ (0.10 mm) or less.
• Indexable turning tools (4132) are made by Arthur R. Warner Co. in the USA. These precision tool holder kits use carbide inserts and include three styles of tools, AR right hand, E Neutral (threading tool – 60-degree angle), and AL left hand. Kit includes three tool holders, three TCMT-21.51 inserts, one extra TCMT-21.52 carbide insert, one extra Torx screw, and one wrench.
• The 3/8″ diameter indexable boring bar (1779) uses CCMT inserts and is 6″ long. The minimum bore diameter for this is 0.50″. The boring bar takes CCMT 21.51 or CCMT 21.52 inserts.
• The premium P1 parting blade (1729) is 1/16″ x 1/2″ x 3-1/2″ and made from M2 HSS by Arthur R. Warner Co. in the USA. These T-shape parting blades provide great side clearance.
• Center Drills (4859): Five sizes combined drills and countersinks made of ground high speed M42 cobalt steel for good wear resistance. Sizes 1, 2, 3, 4, and 5 with 60-degree counter sinks.
