LDO Smart Orbiter v3.0 (Revo Edition)

In stock, ready to ship.

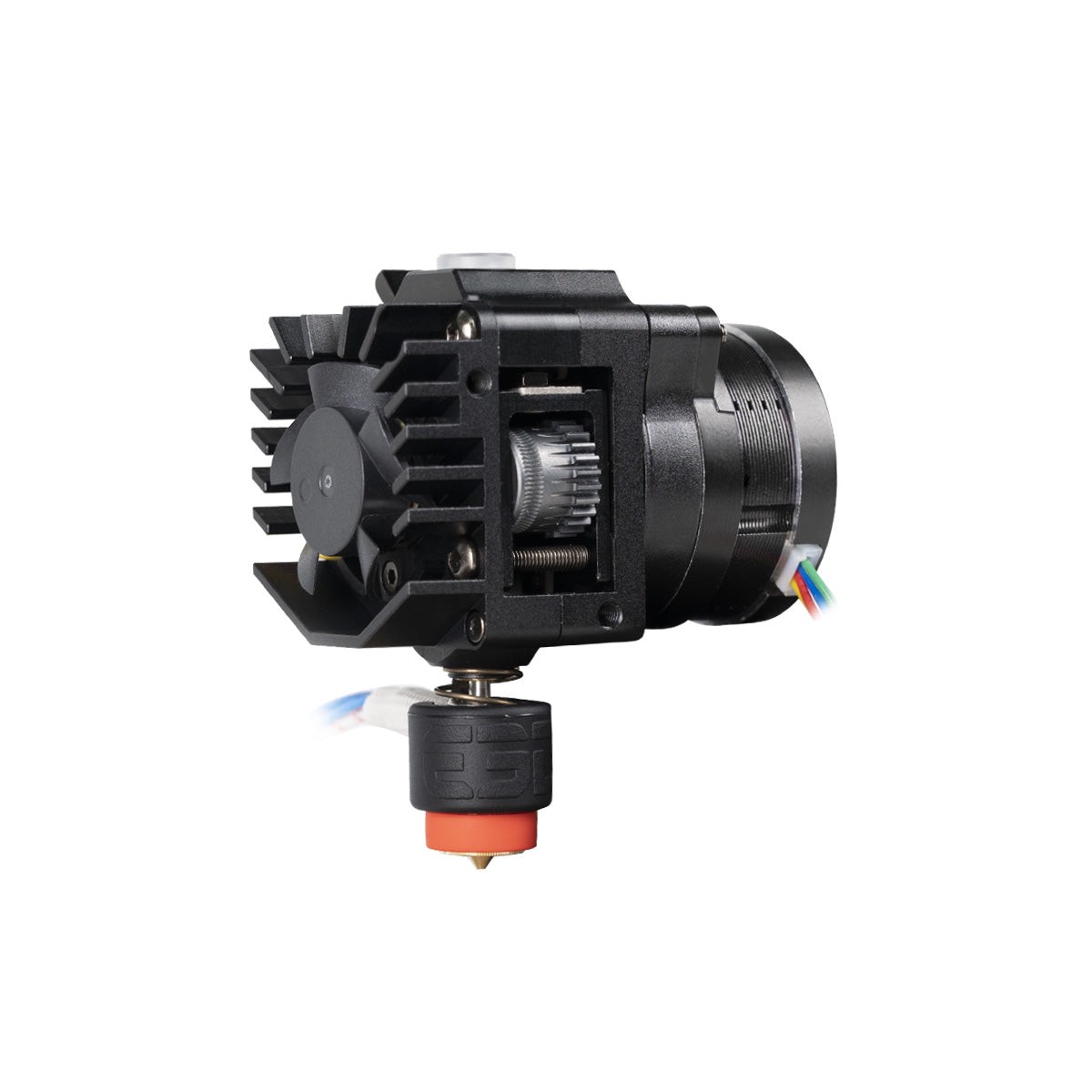

This Smart Orbiter v3.0 Revo Edition manufactured by LDO Motors is an innovative all in one dual drive extruder / hot end tool head assembly. The main mission of this design is the integration of the well proven Orbiter v2 concept into a lightweight all in one smart extruder. Comes with one nozzle, click here if you need more!

The Orbiter v3.0 was designed byDr.LorinczRobert, for more information visithttps://www.orbiterprojects.com/so3/.

• Pure plated copper heat-block with 24v/60W ceramic heater and 0.4mm brass High Flow nozzle for best possible weight to flow ratio
• Heat-break performance optimized with finite element analysis for extreme temperature gradient to ensure clogless free printing experience
• Unique tensioning mechanism with elastic predefined tension levels
• Frameless recessed fan to reduce the extruder weight and outside dimension
• Large RNC coated dual drive gears with planetary gear reduction, similar to Orbiter v2.0
• New precision main shaft design to reduce gear eccentricity
• Full aluminum housing with Delrin plastic gears for low noise and long lifetime
• The smart feature integrated electronics
• Easy removal of the secondary drive gear for easy cleaning and maintenance
• Double filament exit guide system for best TPU printing performance
• Overall weight is 175g
