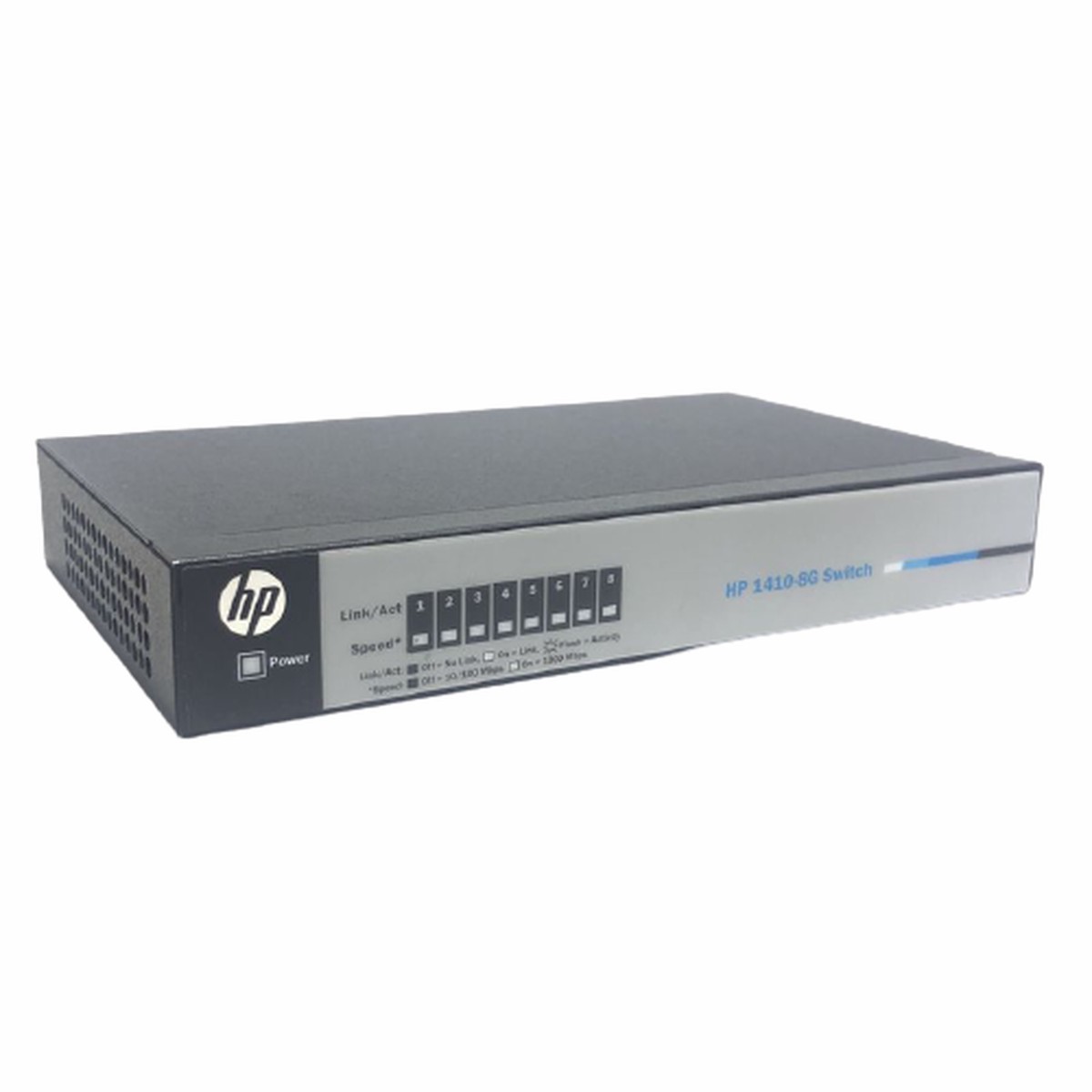

HP V1410 Switch Series devices are plug-and-play unmanaged fixed configuration Gigabit Layer 2 switches designed for small and midsize businesses looking for an entry-level, low cost networking solution with a comprehensive Lifetime Warranty. The Series has three models: the HP V1410-24G Switch is a 24-port 10/100/1000 switch including 2 dual-personality SFP-based mini-GBIC ports; the HP V1410-16G Switch is a 16-port 10/100/1000 switch; the HP V1410-8G Switch is a small-form 8-port 10/100/1000 switch. All support low-cost Ethernet copper cabling; one model (V1410-24G) also supports fiber connectivity. The three switches feature fanless silent operation and can be flexibly deployed wall-mounted or table top. In addition, the 16 and 24-port switches are rack mountable. They support administration-friendly features such as auto-negotiated port speed and automatic detection of the Ethernet cable type (MDI/MDIX).
| Networking |
|
| Address table size |
|
| General protocols |
| IEEE 802.1p Priority; IEEE 802.3x Flow Control |
|
| Latency |
| 100 Mb Latency: < 3.6 s (LIFO 64-byte packets); 1000 Mb Latency: < 1.2 s (LIFO 64-byte packets) |
|
| Memory and processor |
| storage: 4Kb EEPROM capacity, packet buffer size: 192 KB |
|
| Performance |
|
| Throughput |
| up to 11.9 million pps (64-byte packets) |
|
| Switching capacity |
|
| Ports |
|
| Ports |
| 8 auto-sensing 10/100/1000 ports(IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T), Media Type: Auto-MDIX, Duplex: 10Base-T/100Base-TX: half or full; 1000Base-T: full only |
|
| Power |
|
| Power |
| The exact input voltage and frequency rating are determined by the specific power adapter part number ordered. Please select the correct power adapter country option. |
|
| Power consumption |
|
| Input frequency |
|
| Input operating current |
|
| Input voltage |
|
| System |
|
| Form factor |
|
|
| Weight |
.74 lb. |
| Dimensions (W x D x H) |
3.8 x 6.14 x 0.96 in. |
|
