Handwheel, Y and Z-Axis, HiTorque Large Bench Mill
Sale!

Handwheel, Y and Z-Axis, HiTorque Large Bench Mill

Original price was: $89.95.Current price is: $44.98.

SKU: UQ7744003210 Category:

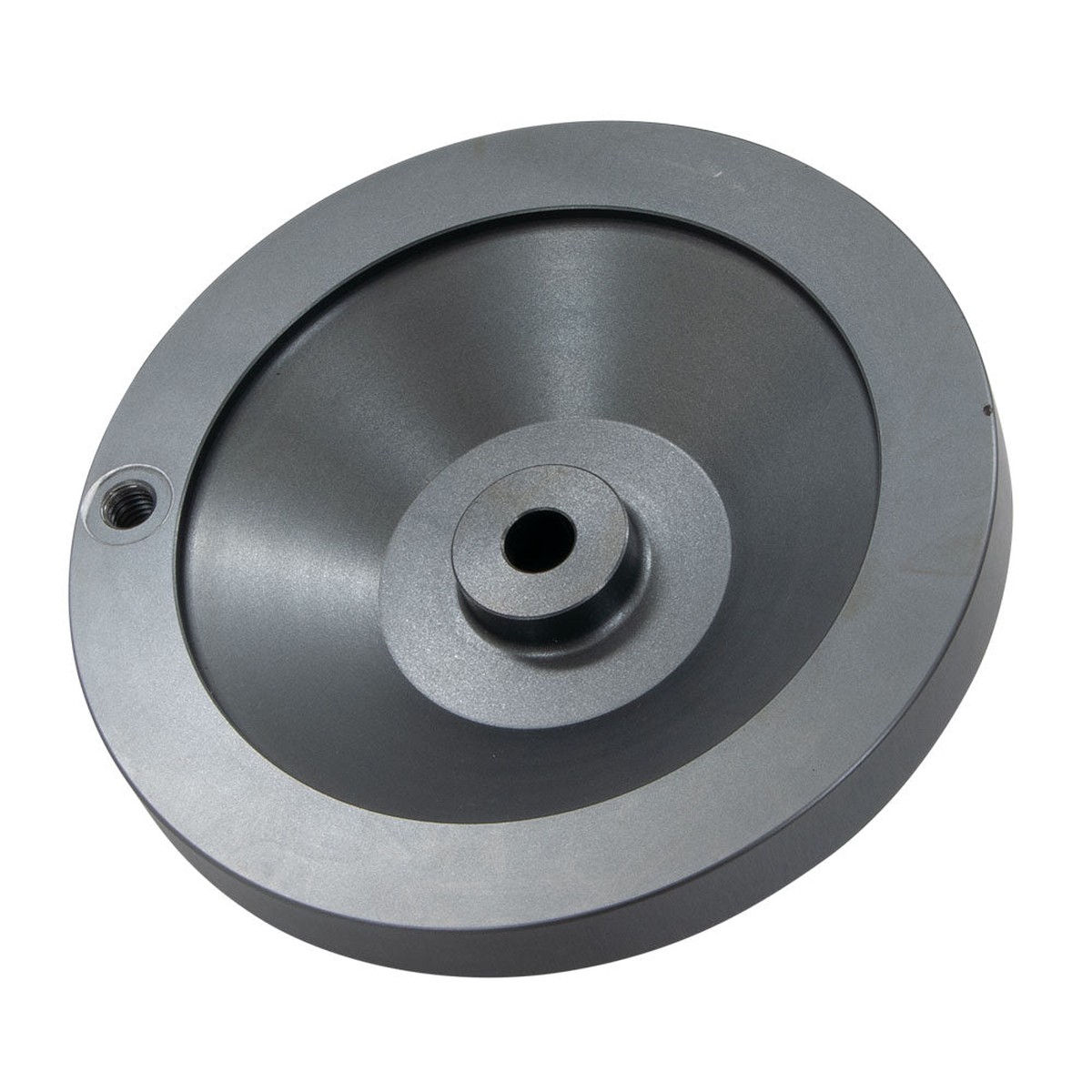

Y and Z-Axis handwheel for the HiTorque large bench mill. This handwheel is aluminum with an anodized finish. The hand wheel is used on the Y-Axis and Z-Axis on the HiTorque large bench mill model 6700 and the Y-Axis only on the HiTorque large bench mill deluxe model 6750. The deluxe large bench mill has a motorized Z-Axis and does not utilize a handwheel.
The handwheel has a 10 mm bore, a 130 mm outside diameter and the handle threading is M8. The handwheel is secured onto the shaft with a M5x20 socket drive flat point set screw.
