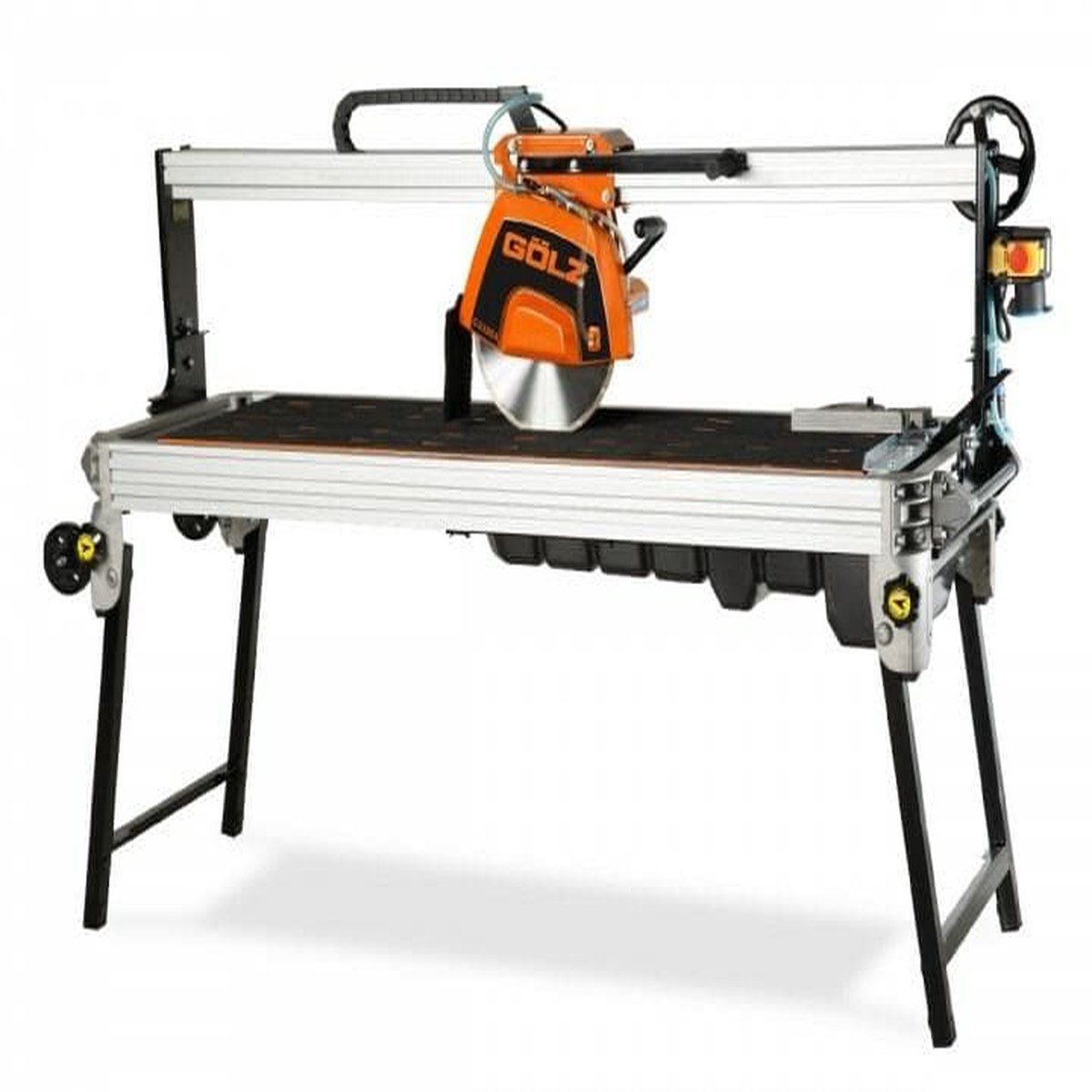

GS350A Bridge Tile Saw
Sale!

GS350A Bridge Tile Saw

Original price was: $4,915.71.Current price is: $150.00.

SKU: T750204111 Category:

Professional aluminium bridge saw! The professional solution for long granite and natural stones.

Aluminium Bridge Saw Cutting length 59 in. (2,000 mm) Blade-14 in. (350 mm) or 78.75 in. (2,000 mm) Blade-14 in. (350 mm)

  • Much more stronger aluminium structure
  • Cutting head adjustable up to 45
  • Max. cutting length up to 2 meter
  • Removable water tub, easy for cleaning
  • Electric water pump with quick coupling, easy for changing the pump
  • Foldable legs
  • Transport wheel, easy for moving and loading
  • Adjustable cutting length
  • The front shield prevents operator against water spray
  • Embedded cable protection chain, protects cables against damage
  • Pluggable blade guard for easy changing of diamond blade
  • Handle wheel feeding system, easy for long cutting
  • Special water nozzle for optimized water cooling
  • Removable cutting table, easy for cleaning

Specifications

GS350A-XL GS350A
Motor Electric, 110V, 20A, 50Hz, IP54 Electric, 110V, 20A, 50Hz, IP54
Power 2,2 kW
2,2 kW
Max. depth 4.375 in. (110 mm) 4.375 in. (110 mm)
Max. blade size 14 in. (350 mm)
14 in. (350 mm)
Arbor hole 1 in. (25,4 mm) 1 in. (25,4 mm)
Cutting length 70.87578.75 in. (18002000 mm)
5159 in. (13001500 mm)
Shaft speed 2,800 min-1 2,800 min-1
45 miter-cut Built-In Built-In
Water pump S2, 110V, 50 Hz, 55W S2, 100V, 20A, 50 Hz, 55W
Blade flange size 3.5 in. (90 mm) 3.5 in. (90 mm)
Transport wheels yes yes
Cutting table (LxW) 78.7520.875 in. (2000529 mm) 5920.875 in. (1650529 mm)
Dimensions (LxWxH) 912958.875 in. (23107401490 mm) 71.252958.625 in. (18107401490 mm)
Weight 297lbs (135 kg 249lbs (113 kg)
