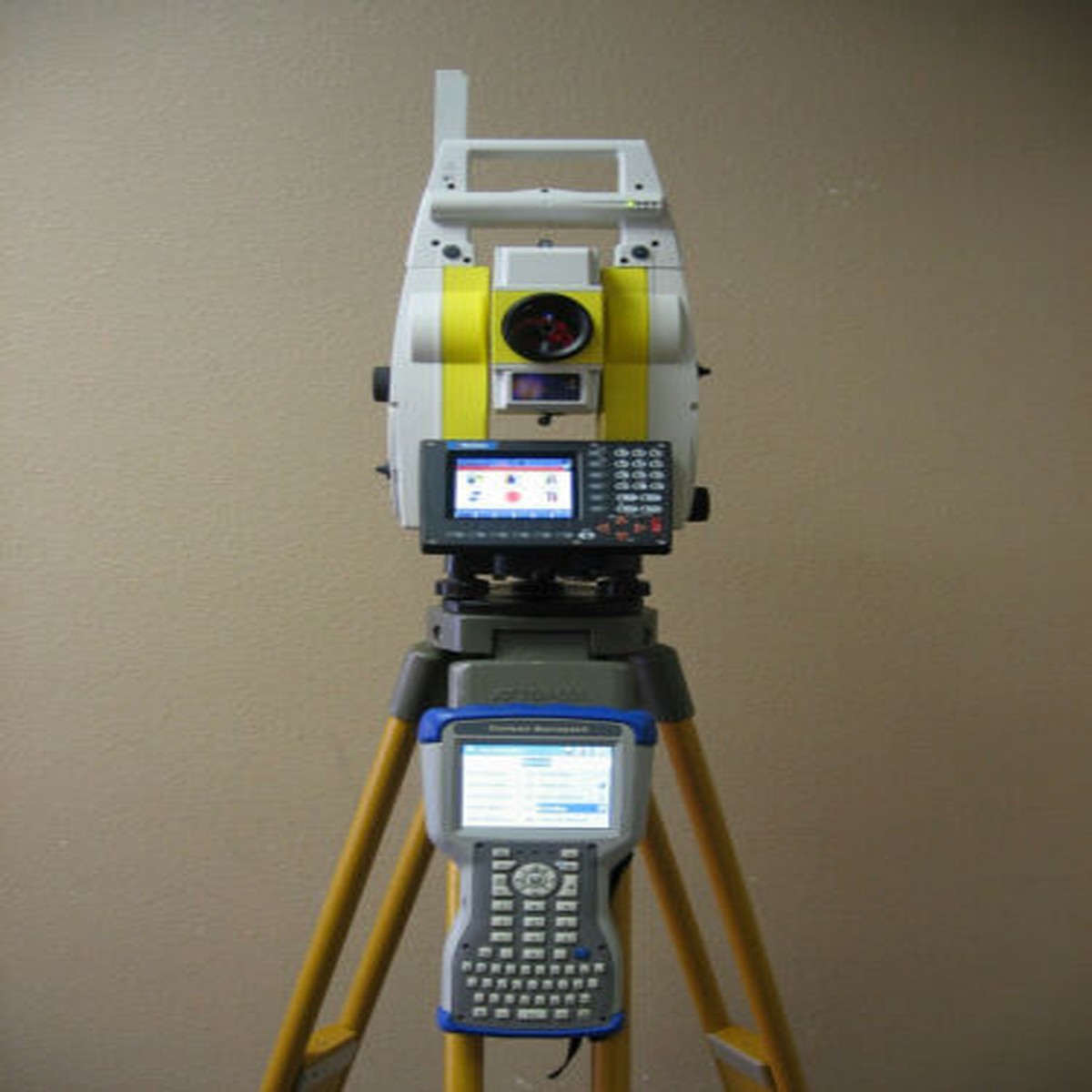

Geomax Zoom 80 Robotic Total station With Leica Prisms

The Leica Geomax Zoom80 offers highprecision prismless measurements for demanding surveying tasks. Its robust Carlson CR2 hardware ensures reliable robotic operation in challenging environments. Integrated zoom optics provide clear targeting up to 80km, while the intuitive interface speeds data collection. Built for durability, this used unit delivers professional performance at a fraction of the cost.

Key Features

• STReAM360 Technology: This suite of technologies enables fully automatic operation.
  • SCOUT360quickly scans the work area to find the prism within seconds.
  • TRACK360provides continuous tracking of a moving prism once locked on.
  • AIM360ensures precise, automatic aiming at the center of any prism with repeatable accuracy.
• Dual Mode EDM: The instrument offers both infrared (IR) and reflectorless distance measurement modes.
  • Prism mode: Measures up to3,500 metersto a single prism with1 mm + 1.5 ppm accuracy.
  • Reflectorless mode: Measures up to1,000 meters(accXess EDM technology) using a visible red laser.
• One-Man Surveying Capability: The system is designed for a single operator, with remote control options and a lightweight setup using a passive reflector.
• User Interface: Features a large, high-contrastcolor LCD touch screendisplay and an illuminated 34-key keyboard for easy operation.
• NavLight: A built-in alignment aid with flashing red and yellow lights guides the rodman quickly and accurately to the line of sight during stake-out tasks.
• Data Management: Supports reliable data storage and transfer using removableCompactFlash cardsandBluetoothwireless technology.
• Rugged Design: The total station has anIP54rating, providing protection against dust and water.
• Compatibility with Leica Prisms: TheGeoMax Zoom 80is designed to work with Leica prisms, including theLeica GRZ122 360-degree prism, ensuring flexibility in equipment choice. The use of standard passive prisms reduces pole weight and the need for additional batteries.
• Software: The instrument runs on Xsite onboard software and is compatible with other field software like Carlson SurvCE.
