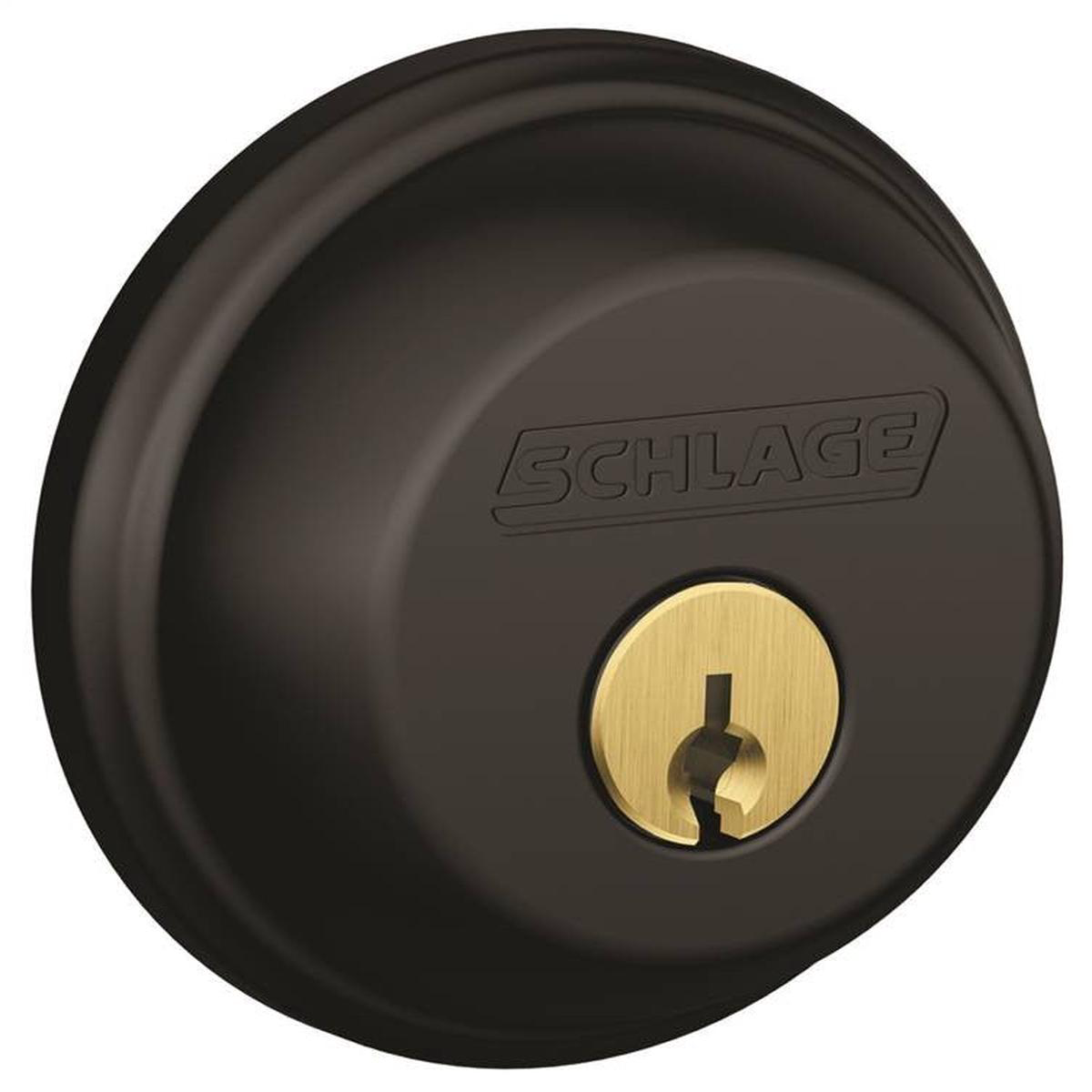

Deadbolt Single Cyl Matte Blk

For residential single and multi-family entrance doors. Deadbolt thrown or retracted by key outside, or by turn unit inside; bolt automatically deadlocks when fully thrown. 7/8″ wrought brass trim ring reinforced with security inserts. Concealed spin ring rotates to protect against wrenching the cylinder. Solid steel door frame reinforcer with 3″ screws protects against kick-in attack. Solid, 1 piece design protects against hammer and crowbar prying attacks. 2-1/2″ steel adapter ring, plated to match, provided for accommodating 2-1/8″ crossbore. Hands free installation. DOOR PREP: 1-1/2″ or 2-1/8″ crossbore; 7/8″ edge bore; 1″ x 2-1/4″ latch face. DOOR THICKNESS: 1-3/8″ to 1-3/4″. CYLINDER: solid brass, 5-pin, tumbler C keyway with nickel silver, pick resistant, spool pins and 2 nickel silver, 5-pin, C section keys. FACEPLATE: 1″ x 2-1/4″. STRIKES: 1-1/8″ x 2-3/4″, no lip, with dust box and door frame reinforcer. BOLT: 7/8″ housing and 1″ throw with concealed hardened steel roller to prevent cutting or sawing. ANSI/BHMA: Exceeds A 156.5, 1992 Grade 2 with Grade 1 security features. DUAL OPTION UNIVERSAL: Fits all doors, 2-3/4″ or 2-3/8″ backset; square corner, round corner, or drive-in preps.

• DEADBOLTS
• Dual Option Universal Latchbolt
• Keying=K4
• Finish=Matte Black
• MAXIMUM SECURITY
• BOXED
• B SERIES – SINGLE CYLINDER
• HEAVY-DUTY RESIDENTIAL/LIGHT-DUTY COMMERCIAL
