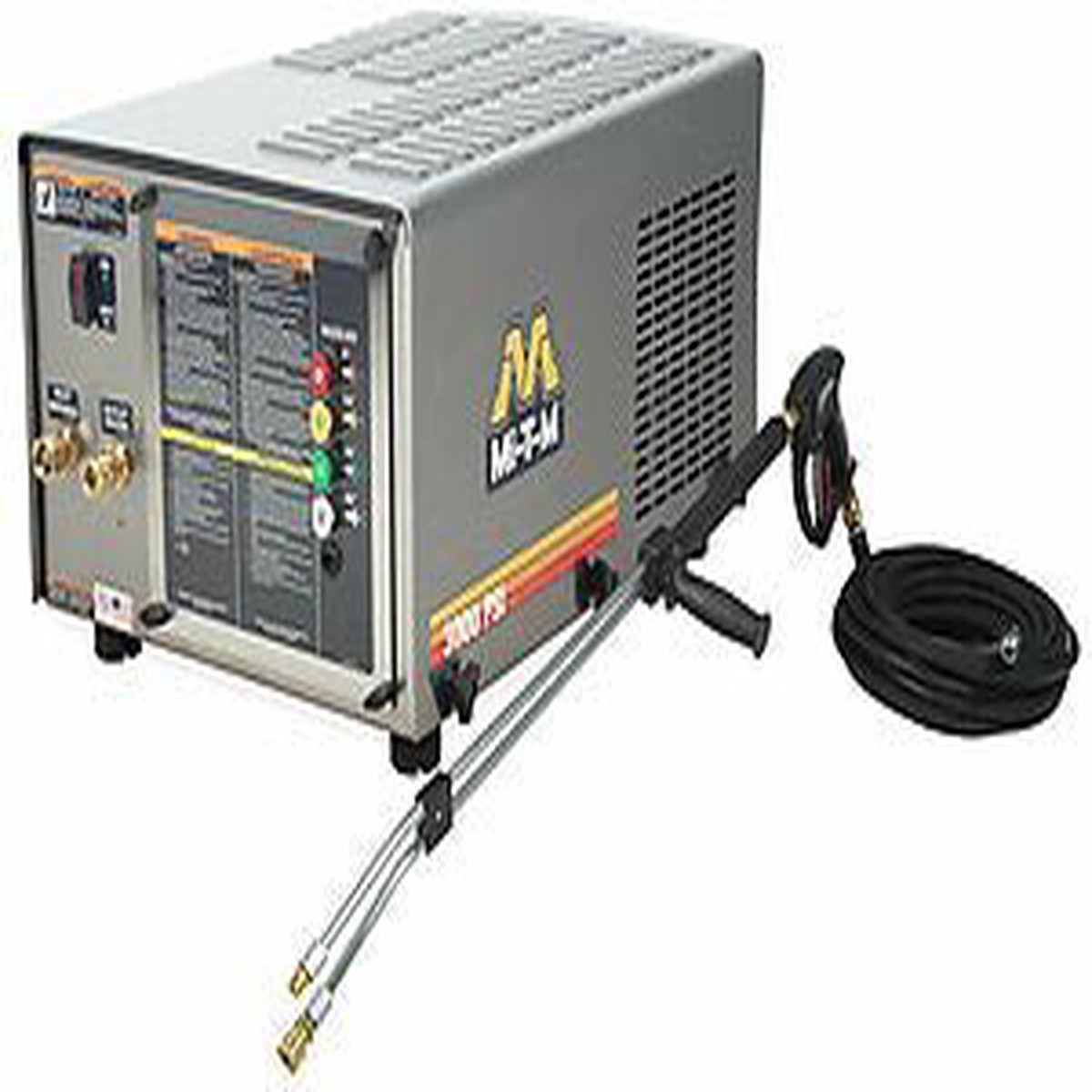

CW Premium Series Electric Belt Drive -CW-3005-SME3

CW-3004-SME3

Food and beverage industries use the stationary CW Premium Series to keep floors, worktables and appliances spotless. It is also a great addition to any wash bay.

Product Sheet

Pump
Forged brass manifold Thermal relief valve Quick connect low pressure detergent injector Pump accepts incoming water up to 165F

Motor
Open drip-proof electric motor with manual thermal overload protection 4-foot power cord with GFCI

Frame
Stainless-steel cabinet design with removable panel Four rubber isolators

Component
Time delay shutdown

Unit Includes
Quick connect nozzles – 0, 15, 25 and 40 50-foot x 3/8-inch black hose 36-inch adjustable dual lance with insulated trigger gun

460V motors available as options.

Specifications

• PSI3000

• GPM4.8

• Horsepower/Motor 10.0 HP, 230V, 3, 26.2A -OR- 10.0 HP, 460V, 3, 13.1A

• PumpGeneral

• UnloaderFactory Preset

• Plug TypeNEMA L15-30P

Options

• CX-0069 Auto Start/Stop

  When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart

• CX-0077 460V on 8.0 HP, 3 Phase Models

  For when you have 460V of power available

• CX-0078 Remote Box

  Adds plastic control box with rocker switches, can be mounted away from unit to control on/off

• CX-0096 Hour Meter

  Displays the number of hours unit has been in operation

• CX-0109 Additional Remote Box

  Additional remote boxes (up to 3)

• CX-0124 Wheel Kit with 2 Flat-Free Tires and 2 Swivel Caster Wheels with Brakes

  Allows the unit to become portable

• CX-0125 Wheel Kit with 2 Flat-Free Tires and 2 Swivel Caster Wheels with Brakes

Warranty Information

• 1 Year Electric Motor
• 7 Year General Pump
