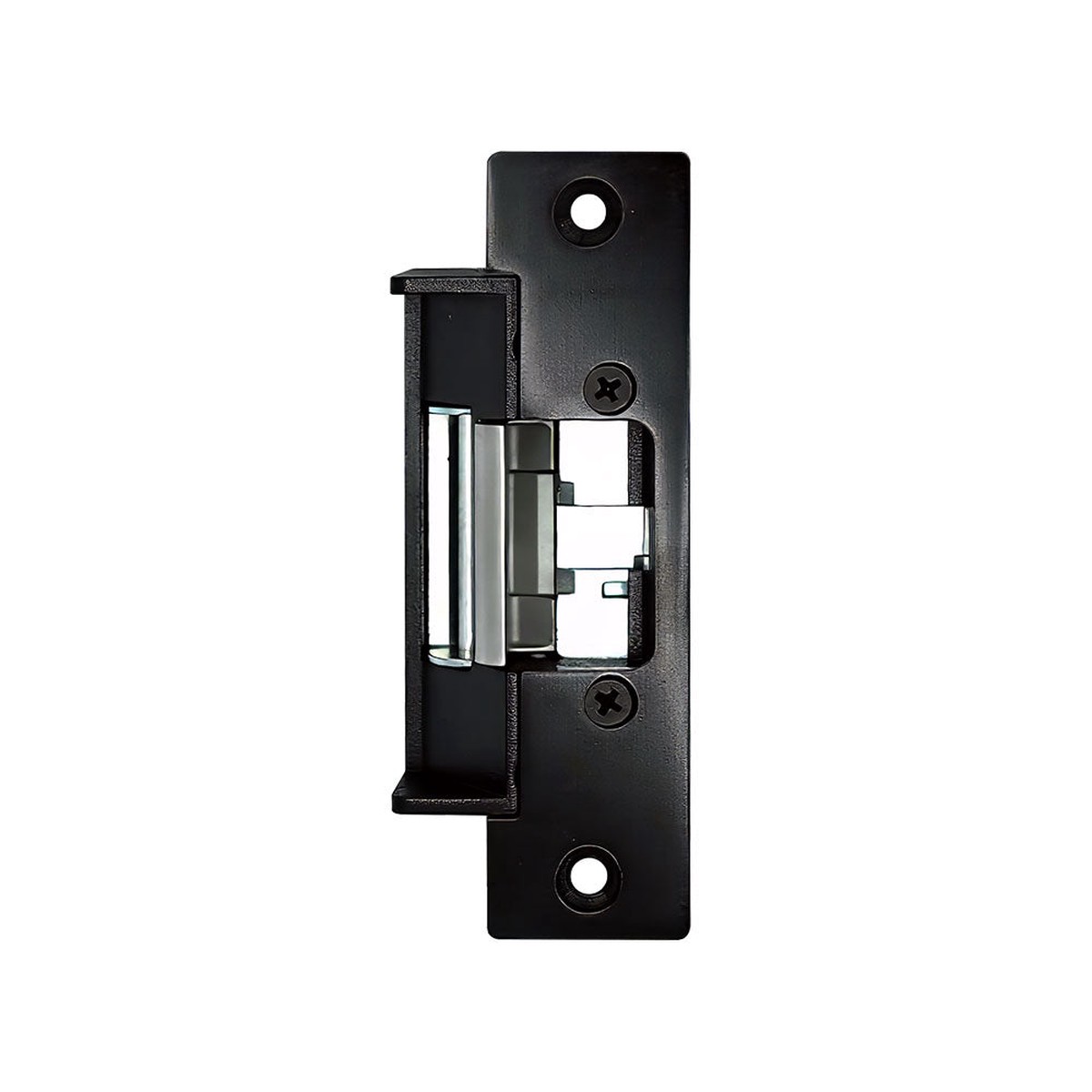

Camden CX-ED1079-BK Low Profile ANSI Universal Electric Strike - 12 to 58 Throw - Grade 1
Sale!

Camden CX-ED1079-BK Low Profile ANSI Universal Electric Strike – 12 to 58 Throw – Grade 1

Original price was: $468.57.Current price is: $140.57.

SKU: VNHO713427192163 Category:

Camden CX-ED1079-BK Low Profile ANSI Universal Electric Strike – 1/2″ to 5/8″ Throw – Grade 1

Low Profile Grade 1 ‘Universal’ electric strike, 12/24V AC/DC, fail safe / fail secure operation, horizontal adjustment, and (3) Black faceplates (CX-ESP1B-BK, CX-ESP3B-BK & CX-ESP4B-BK)

Features:
  • Centerline latch entry for cylindrical locksets.
  • Adjustable strike body
  • Selectable 12/24V AC/DC
  • Selectable fail safe / fail secure operation
  • 3 black faceplates included
  • Horizontal adjustability of strike faceplate/body Non-handed
  • Easy fit connectors for power & monitoring wires
  • Trim plate included
  • Non-handed
  • Continuous duty operation
Specifications:
Voltage 12/24V AC/DC
Current Draw 260 mA @ 12 VDC
150 mA @ 24 VDC
Static Hold Strength 1,500 Lbs.
Dynamic Strength 70 Ft-Lbs.
Endurance 1,000,000 cycles (Factory Tested)
250,000 cycles (UL Verified)
Mode Selectable – Fail Safe; Fail Secure
Operation AC – Buzz
DC- Silent
Duty Continuous
Mechanical Adjustment Strike body
Latch Monitor No
Dimensions 3.25″L x 10.51″W x 2.25″H
Downloads:
  • Specifications Sheet
