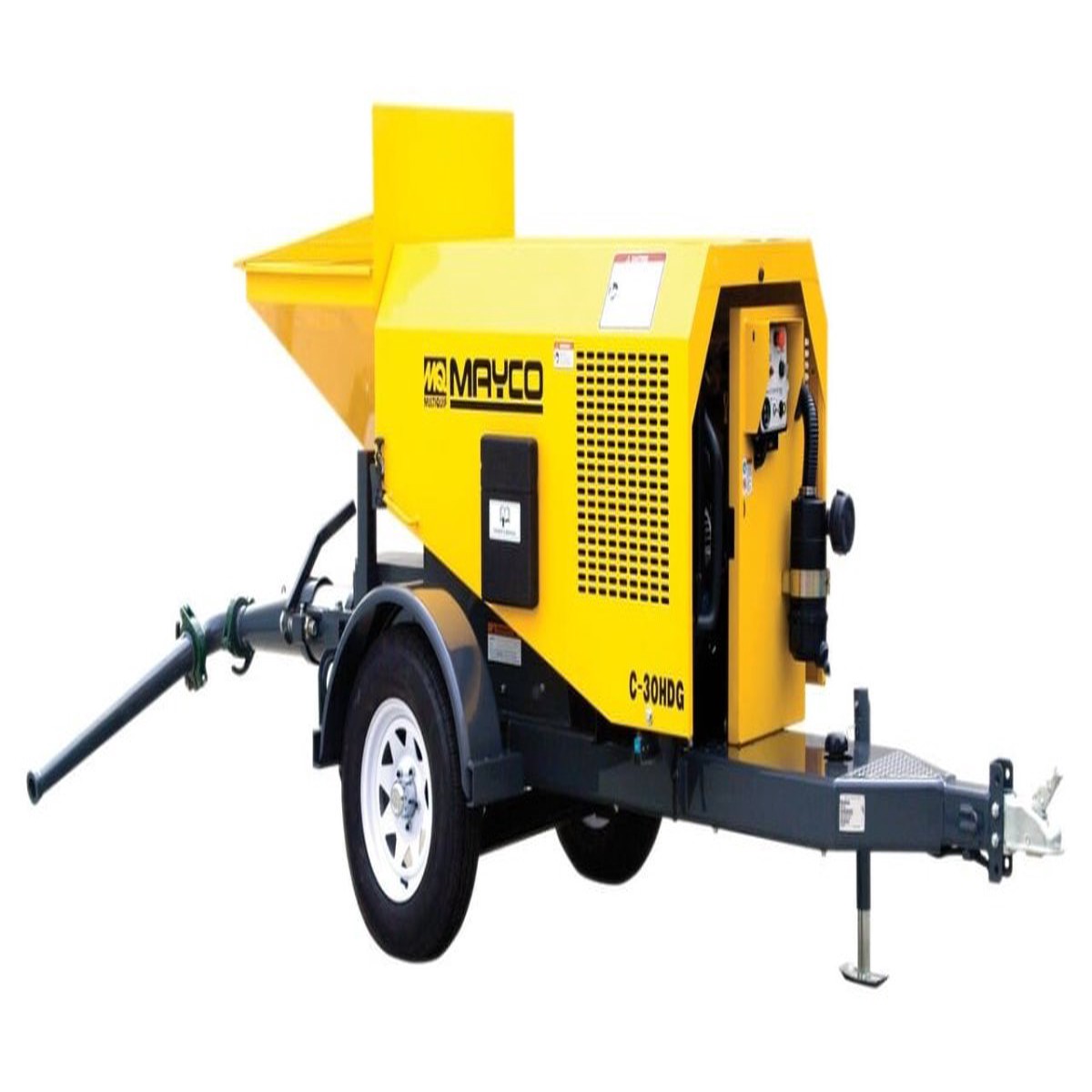

C30HDGA Ball-Valve Concrete Pump

C30HDG Ball-Valve Concrete Pump Machine for Sale – Call for pricing and availability. Wireless remote and other accessories are available.

Zenith Z416 Gamma 45 HP Gasoline Engine

The C30HDGA grout & concrete pump offers uncompromising engine performance with excellent fuel efficiency in a quiet, smooth pumping package.

• Pumps up to25 cubic yards (19 cubic meters) per hour
• Maximum aggregate size of 1/2-inch minus (12 mm)
• 45-hp(33.5 kW) fuel-injectedZenith gasoline engine ensures quiet, efficient performance
• Standard 2-function 125-foot(37.5 meters) hardwired remote. Multi-function radio remote with full volume control (Optional).
• Fully-enclosed pistonlubrication box and central lubrication grease station
• Standard equipment includes a 3-inch (76 mm) x 90-degree pipe elbow, 3 x 2 x 28-inch reducer, and two 3-inch couplings (all raised ends)
• Excellent choice for small-aggregate concrete pumping, masonry grout, shotcrete, pressure grouting, and more

Unit Specifications

Pump Type	Reciprocating piston
Hopper Capacity	6 ft	0.17 m
Material Hose Diameter	3 in	76 mm

Pumping Specifications

Volume Output per Hour*	25 yd	19 m
Concrete Piston Face Pressure	500 psi
Max. Aggregate Size	0.5 in	12 mm
* These figures will vary due to concrete mix design, line size, and job site conditions.

Dimensions & Weights

Overall Length	144 in	3658 mm
Overall Width	59 in	1499 mm
Overall Height	65 in	1651 mm
Operating Weight	2920 lb	1325 kg
Shipping Weight	178 lb	126.3 kg

Notice: Features and equipment specifications are subject to change without notice.

Features & Accessories

Standard Features	125 ft Remote Cable
Optional Accessories	Air or electric vibrator (mounted to hopper screen) Wireless remote Wetgun nozzle Reducers Steel pipe Couplings Concrete/grout hose 3 in Pintle ring 2.5/16 in Ball Hitch
